CDL,CDLF型为非自吸立式多级离心泵（以下简称泵），具有***率、低噪音、耐轻度腐蚀及结构紧凑、外形美观、体积小、重量轻、使用维护方便、密封性能可靠等特点。

产品用途

产品适用低粘度、中性、非爆炸性、不含固体颗粒或纤维的液体，被输送的液体不能对泵的材料具有化学腐蚀性。

锅炉给水及冷凝液系统；水处理、渗透及过滤系统；

视频、饮料行业；高层建筑给水；

农业、苗圃、高尔夫球场灌溉；消防系统；

工业清洗系统；液体的输送、循环和提升；

空调与制冷系统；

适用范围

介质温度：常温度-15℃~+70℃；热水型+70℃~+120℃；

流量范围：1~110m3/h; 压力：30bar；

介质酸碱度范围：PH3~9；环境温度：+40℃；

海拔：1000m 进口压力：参照NPSH曲线；

注意：当泵输送的液体的比重和粘度比水大时，输出率会上升，所以***使用与轴功率相匹配的电机

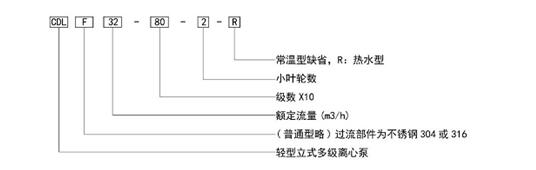

型号意义

CDLF2 不锈钢多级离心泵

CDLF不锈钢多级泵

产品信息

产品介绍

详细规格

产品选型（）

补充说明

联系信息

还有疑问？

NO.	型号	流量 (m³/h)	H (m)	N (r/min)	P (kw)	η (%)
1	CDLF1-2	1	11.5	2900	0.37	38.5
2	CDLF1-3	1	17	2900	0.37	37
3	CDLF1-4	1	23	2900	0.37	37
4	CDLF1-5	1	28	2900	0.37	37
5	CDLF1-6	1	34	2900	0.37	37
6	CDLF1-7	1	39	2900	0.37	37
7	CDLF1-8	1	45	2900	0.55	37
8	CDLF1-9	1	51	2900	0.55	37
9	CDLF1-10	1	57	2900	0.55	37
10	CDLF1-11	1	61	2900	0.55	37
11	CDLF1-12	1	67	2900	0.75	37
12	CDLF1-13	1	73	2900	0.75	37
13	CDLF1-14	1	78	2900	0.75	37
14	CDLF1-15	1	84	2900	0.75	37
15	CDLF1-16	1	89	2900	1.1	37
16	CDLF1-17	1	95	2900	1.1	37
17	CDLF1-18	1	100	2900	1.1	37
18	CDLF1-19	1	106	2900	1.1	37
19	CDLF1-20	1	111	2900	1.1	37
20	CDLF1-21	1	117	2900	1.1	37
21	CDLF1-22	1	122	2900	1.1	37
22	CDLF1-23	1	128	2900	1.1	37
23	CDLF1-24	1	133	2900	1.5	37
24	CDLF1-25	1	139	2900	1.5	37
25	CDLF1-27	1	150	2900	1.5	37
26	CDLF1-28	1	155	2900	1.5	37
27	CDLF1-26	1	144	2900	1.5	37
28	CDLF1-29	1	160	2900	1.5	37
29	CDLF1-30	1	166	2900	1.5	37
30	CDLF1-31	1	172	2900	2.2	37
31	CDLF1-32	1	178	2900	2.2	37
32	CDLF1-33	1	183	2900	2.2	37
33	CDLF1-34	1	189	2900	2.2	37
34	CDLF1-35	1	194	2900	2.2	37
35	CDLF1-36	1	200	2900	2.2	37
36	CDLF5-2	5	10	2900	0.37	64
37	CDLF5-3	5	15	2900	0.55	64
38	CDLF5-4	5	20	2900	0.55	64
39	CDLF5-5	5	26	2900	0.75	64
40	CDLF5-6	5	32	2900	1.1	64
41	CDLF5-7	5	37	2900	1.1	64
42	CDLF5-8	5	43	2900	1.1	64
43	CDLF5-9	5	48	2900	1.5	64
44	CDLF5-10	5	54	2900	1.5	64
45	CDLF5-11	5	59	2900	2.2	64
46	CDLF5-12	5	65	2900	2.2	64
47	CDLF5-13	5	70	2900	2.2	64
48	CDLF5-14	5	75	2900	2.2	64
49	CDLF5-15	5	81	2900	2.2	64
50	CDLF5-16	5	87	2900	2.2	64
51	CDLF5-18	5	100	2900	3	64
52	CDLF5-20	5	112	2900	3	64
53	CDLF5-22	5	123	2900	4	64
54	CDLF5-24	5	134	2900	4	64
55	CDLF5-26	5	146	2900	4	64
56	CDLF5-29	5	164	2900	4	64
57	CDLF5-32	5	181	2900	5.5	64
58	CDLF5-36	5	205	2900	5.5	64
59	CDLF2-2	2	15	2900	0.37	42.5
60	CDLF2-3	2	22	2900	0.37	42.5
61	CDLF2-4	2	30	2900	0.55	42.5
62	CDLF2-5	2	37	2900	0.55	42.5
63	CDLF2-6	2	45	2900	0.75	42.5
64	CDLF2-7	2	52	2900	0.75	42.5
65	CDLF2-8	2	59	2900	1.1	42.5
66	CDLF2-9	2	67	2900	1.1	42.5
67	CDLF2-10	2	74	2900	1.1	42.5
68	CDLF2-11	2	82	2900	1.1	42.5
69	CDLF2-12	2	90	2900	1.5	42.5
70	CDLF2-13	2	98	2900	1.5	42.5
71	CDLF2-14	2	105	2900	1.5	42.5
72	CDLF2-15	2	112	2900	1.5	42.5
73	CDLF2-16	2	120	2900	2.2	42.5
74	CDLF2-17	2	128	2900	2.2	42.5
75	CDLF2-18	2	136	2900	2.2	42.5
76	CDLF2-19	2	143	2900	2.2	42.5
77	CDLF2-20	2	150	2900	2.2	42.5
78	CDLF2-21	2	157	2900	2.2	42.5
79	CDLF2-22	2	165	2900	2.2	42.5
80	CDLF2-23	2	173	2900	3	42.5
81	CDLF2-24	2	181	2900	3	42.5
82	CDLF2-25	2	189	2900	3	42.5
83	CDLF2-26	2	198	2900	3	42.5
84	CDLF3-2	3	9	2900	0.37	52
85	CDLF3-3	3	14	2900	0.37	52
86	CDLF3-4	3	19	2900	0.37	52
87	CDLF3-5	3	23	2900	0.37	52
88	CDLF3-6	3	28	2900	0.55	52
89	CDLF3-7	3	32	2900	0.55	52
90	CDLF3-8	3	37	2900	0.75	52
91	CDLF3-9	3	42	2900	0.75	52
92	CDLF3-10	3	47	2900	0.75	52
93	CDLF3-11	3	51	2900	1.1	52
94	CDLF3-12	3	55	2900	1.1	52
95	CDLF3-13	3	60	2900	1.1	52
96	CDLF3-14	3	64	2900	1.1	52
97	CDLF3-15	3	69	2900	1.1	52
98	CDLF3-16	3	74	2900	1.5	52
99	CDLF3-17	3	79	2900	1.5	52
100	CDLF3-18	3	83	2900	1.5	52
101	CDLF3-19	3	88	2900	1.5	52
102	CDLF3-20	3	93	2900	2.2	52
103	CDLF3-21	3	98	2900	2.2	52
104	CDLF3-22	3	102	2900	2.2	52
105	CDLF3-23	3	107	2900	2.2	52
106	CDLF3-24	3	111	2900	2.2	52
107	CDLF3-25	3	116	2900	2.2	52
108	CDLF3-26	3	120	2900	2.2	52
109	CDLF3-27	3	124	2900	2.2	52
110	CDLF3-28	3	128	2900	2.2	52
111	CDLF3-29	3	133	2900	2.2	52
112	CDLF3-30	3	137	2900	3	52
113	CDLF3-31	3	142	2900	3	52
114	CDLF3-32	3	146	2900	3	52
115	CDLF3-33	3	151	2900	3	52
116	CDLF3-34	3	157	2900	3	52
117	CDLF3-35	3	163	2900	3	52
118	CDLF3-36	3	168	2900	3	52
119	CDLF4-2	4	15	2900	0.37	53
120	CDLF4-3	4	24	2900	0.55	53
121	CDLF4-4	4	32	2900	0.75	53
122	CDLF4-5	4	40	2900	1.1	53
123	CDLF4-6	4	48	2900	1.1	53
124	CDLF4-7	4	56	2900	1.5	53
125	CDLF4-8	4	64	2900	1.5	53
126	CDLF4-9	4	72	2900	2.2	53
127	CDLF4-10	4	81	2900	2.2	53
128	CDLF4-11	4	88	2900	2.2	53
129	CDLF4-12	4	95	2900	2.2	53
130	CDLF4-13	4	103	2900	3	53
131	CDLF4-14	4	112	2900	3	53
132	CDLF4-15	4	120	2900	3	53
133	CDLF4-16	4	129	2900	3	53
134	CDLF4-17	4	137	2900	4	53
135	CDLF4-18	4	145	2900	4	53
136	CDLF4-19	4	153	2900	4	53
137	CDLF4-20	4	161	2900	4	53
138	CDLF4-21	4	169	2900	4	53
139	CDLF4-22	4	178	2900	4	53
140	CDLF8-2/1	8	9	2900	0.75	58.5
141	CDLF8-2	8	18	2900	0.75	58.5
142	CDLF8-3	8	27	2900	1.1	58.5
143	CDLF8-4	8	36	2900	1.5	58.5
144	CDLF8-5	8	45	2900	2.2	58.5
145	CDLF8-6	8	54	2900	2.2	58.5
146	CDLF8-7	8	63	2900	3	58.5
147	CDLF8-8	8	73	2900	3	58.5
148	CDLF8-9	8	82	2900	4	58.5
149	CDLF8-10	8	92	2900	4	58.5
150	CDLF8-11	8	101	2900	4	58.5
151	CDLF8-12	8	111	2900	4	58.5
152	CDLF8-13	8	120	2900	5.5	58.5
153	CDLF8-14	8	130	2900	5.5	58.5
154	CDLF8-15	8	139	2900	5.5	58.5
155	CDLF8-16	8	148	2900	5.5	58.5
156	CDLF8-17	8	157	2900	7.5	58.5
157	CDLF8-18	8	167	2900	7.5	58.5
158	CDLF8-19	8	176	2900	7.5	58.5
159	CDLF8-20	8	186	2900	7.5	58.5
160	CDLF12-2	12	20	2900	1.5	61.6
161	CDLF12-3	12	30	2900	2.2	61.6
162	CDLF12-4	12	40	2900	3	61.6
163	CDLF12-5	12	50	2900	3	61.6
164	CDLF12-6	12	60	2900	4	61.6
165	CDLF12-7	12	70	2900	5.5	61.6
166	CDLF12-8	12	80	2900	5.5	61.6
167	CDLF12-9	12	91	2900	5.5	61.6
168	CDLF12-10	12	101	2900	7.5	61.6
169	CDLF12-11	12	111	2900	7.5	61.6
170	CDLF12-12	12	121	2900	7.5	61.6
171	CDLF12-13	12	131	2900	11	61.6
172	CDLF12-14	12	141	2900	11	61.6
173	CDLF12-15	12	151	2900	11	61.6
174	CDLF12-16	12	162	2900	11	61.6
175	CDLF12-17	12	172	2900	11	61.6
176	CDLF12-18	12	183	2900	11	61.6
177	CDLF16-2	16	22	2900	2.2	63.7
178	CDLF16-3	16	34	2900	3	63.7
179	CDLF16-4	16	46	2900	4	63.7
180	CDLF16-5	16	58	2900	5.5	63.7
181	CDLF16-6	16	70	2900	5.5	63.7
182	CDLF16-7	16	82	2900	7.5	63.7
183	CDLF16-8	16	94	2900	7.5	63.7
184	CDLF16-9	16	106	2900	11	63.7
185	CDLF16-10	16	118	2900	11	63.7
186	CDLF16-11	16	129	2900	11	63.7
187	CDLF16-12	16	141	2900	11	63.7
188	CDLF16-13	16	153	2900	15	63.7
189	CDLF16-14	16	166	2900	15	63.7
190	CDLF16-15	16	177	2900	15	63.7
191	CDLF16-16	16	189	2900	15	63.7
192	CDLF20-1	20	10	2900	1.1	65.4
193	CDLF20-2	20	23	2900	2.2	65.4
194	CDLF20-3	20	35	2900	4	65.4
195	CDLF20-4	20	47	2900	5.5	65.4
196	CDLF20-5	20	58	2900	5.5	65.4
197	CDLF20-6	20	70	2900	7.5	65.4
198	CDLF20-7	20	82	2900	7.5	65.4
199	CDLF20-8	20	94	2900	11	65.4
200	CDLF20-9	20	106	2900	11	65.4
201	CDLF20-10	20	118	2900	11	65.4
202	CDLF20-11	20	130	2900	15	65.4
203	CDLF20-12	20	142	2900	15	65.4
204	CDLF20-13	20	154	2900	15	65.4
205	CDLF20-14	20	166	2900	15	65.4
206	CDLF20-15	20	178	2900	18.5	65.4
207	CDLF20-16	20	190	2900	18.5	65.4
208	CDLF20-17	20	202	2900	18.5	65.4
209	CDLF32-10-1	32	9	2900	1.5	68.2
210	CDLF32-10	32	13	2900	2.2	68.2
211	CDLF32-20-2	32	20	2900	3	68.2
212	CDLF32-20	32	27	2900	4	68.2
213	CDLF32-30-2	32	33	2900	5.5	68.2
214	CDLF32-30	32	40	2900	5.5	68.2
215	CDLF32-40-2	32	46	2900	7.5	68.2
216	CDLF32-40	32	53	2900	7.5	68.2
217	CDLF32-50-2	32	60	2900	11	68.2
218	CDLF32-50	32	67	2900	11	68.2
219	CDLF32-60-2	32	74	2900	11	68.2
220	CDLF32-60	32	81	2900	11	68.2
221	CDLF32-70-2	32	88	2900	15	68.2
222	CDLF32-70	32	95	2900	15	68.2
223	CDLF32-80-2	32	102	2900	15	68.2
224	CDLF32-80	32	109	2900	15	68.2
225	CDLF32-90-2	32	117	2900	18.5	68.2
226	CDLF32-90	32	124	2900	18.5	68.2
227	CDLF32-100-2	32	131	2900	18.5	68.2
228	CDLF32-100	32	138	2900	18.5	68.2
229	CDLF32-110-2	32	146	2900	22	68.2
230	CDLF32-110	32	153	2900	22	68.2
231	CDLF32-120-2	32	160	2900	22	68.2
232	CDLF32-120	32	167	2900	22	68.2
233	CDLF32-130-2	32	174	2900	30	68.2
234	CDLF32-130	32	181	2900	30	68.2
235	CDLF32-140-2	32	189	2900	30	68.2
236	CDLF32-140	32	196	2900	30	68.2
237	CDLF32-150-2	32	203	2900	30	68.2
238	CDLF32-150	32	210	2900	30	68.2
239	CDLF32-160-2	32	218	2900	30	68.2
240	CDLF32-160	32	225	2900	30	68.2
241	CDLF45-10-1	45	16	2900	3	69.8
242	CDLF45-10	45	20	2900	4	69.8
243	CDLF45-20-2	45	32	2900	5.5	69.8
244	CDLF45-20	45	41	2900	7.5	69.8
245	CDLF45-30-2	45	52	2900	11	69.8
246	CDLF45-30	45	61	2900	11	69.8
247	CDLF45-40-2	45	73	2900	15	69.8
248	CDLF45-40	45	81	2900	15	69.8
249	CDLF45-50-2	45	93	2900	18.5	69.8
250	CDLF45-50	45	101	2900	18.5	69.8
251	CDLF45-60-2	45	113	2900	22	69.8
252	CDLF45-60	45	122	2900	22	69.8
253	CDLF45-70-2	45	134	2900	30	69.8
254	CDLF45-70	45	142	2900	30	69.8
255	CDLF45-80-2	45	154	2900	30	69.8
256	CDLF45-80	45	162	2900	30	69.8
257	CDLF45-90-2	45	174	2900	30	69.8
258	CDLF45-90	45	183	2900	37	69.8
259	CDLF45-100-2	45	194	2900	37	69.8
260	CDLF45-100	45	203	2900	37	69.8
261	CDLF45-110-2	45	217	2900	45	69.8
262	CDLF45-110	45	225	2900	45	69.8
263	CDLF45-120-2	45	238	2900	45	69.8
264	CDLF45-120	45	247	2900	45	69.8
265	CDLF45-130-2	45	259	2900	45	69.8
266	CDLF65-10-1	65	13	2900	4	72.3
267	CDLF65-10	65	20	2900	5.5	72.3
268	CDLF65-20-2	65	26	2900	7.5	72.3
269	CDLF65-20-1	65	33	2900	11	72.3
270	CDLF65-20	65	40	2900	11	72.3
271	CDLF65-30-2	65	46	2900	15	72.3
272	CDLF65-30-1	65	53	2900	15	72.3
273	CDLF65-30	65	60	2900	18.5	72.3
274	CDLF65-40-2	65	66	2900	18.5	72.3
275	CDLF65-40-1	65	73	2900	22	72.3
276	CDLF65-40	65	80	2900	22	72.3
277	CDLF65-50-2	65	88	2900	30	72.3
278	CDLF65-50-1	65	95	2900	30	72.3
279	CDLF65-50	65	102	2900	30	72.3
280	CDLF65-60-2	65	110	2900	30	72.3
281	CDLF65-60-1	65	117	2900	37	72.3
282	CDLF65-60	65	124	2900	37	72.3
283	CDLF65-70-2	65	132	2900	37	72.3
284	CDLF65-70-1	65	139	2900	37	72.3
285	CDLF65-70	65	146	2900	45	72.3
286	CDLF65-80-2	65	161	2900	45	72.3
287	CDLF65-80-1	65	161	2900	45	72.3
288	CDLF90-10-1	90	13.2	2900	5.5	73.3
289	CDLF90-10	90	19.3	2900	7.5	73.4
290	CDLF90-20-2	90	29	2900	11	73.4
291	CDLF90-20	90	40	2900	15	73.4
292	CDLF90-30-2	90	50	2900	18.5	73.4
293	CDLF90-30	90	62	2900	22	73.4
294	CDLF90-40-2	90	72	2900	30	73.4
295	CDLF90-40	90	83	2900	30	73.4
296	CDLF90-50-2	90	94	2900	37	73.4
297	CDLF90-50	90	106	2900	37	73.4
298	CDLF90-60-2	90	118	2900	45	73.4
299	CDLF90-60	90	129	2900	45	73.4
300	CDLF120-10	120	18.5	2950	11	74.7
301	CDLF120-20-2	120	29	2950	15	74.7
302	CDLF120-20-1	120	35	2950	18.5	74.7
303	CDLF120-20	120	40	2950	22	74.7
304	CDLF120-30-2	120	49	2950	30	74.7
305	CDLF120-30-1	120	56	2950	30	74.7
306	CDLF120-30	120	61	2950	30	74.7
307	CDLF120-40-2	120	69	2950	37	74.7
308	CDLF120-40-1	120	76	2950	37	74.7
309	CDLF120-40	120	81	2950	45	74.7
310	CDLF120-50-2	120	90	2950	45	74.7
311	CDLF120-50-1	120	97	2950	45	74.7
312	CDLF120-50	120	102	2950	55	74.7
313	CDLF120-60-2	120	110	2950	55	74.7
314	CDLF120-60-1	120	118	2950	55	74.7
315	CDLF120-60	120	123	2950	75	74.7
316	CDLF120-70-2	120	130	2950	75	74.7
317	CDLF120-70-1	120	138	2950	75	74.7
318	CDLF120-70	120	145	2950	75	74.7
319	CDLF150-10-1	150	12.5	2950	11	75.8
320	CDLF150-10	150	18.5	2950	15	75.8
321	CDLF150-20-2	150	28	2950	18.5	75.8
322	CDLF150-20-1	150	35	2950	22	75.8
323	CDLF150-20	150	40	2950	30	75.8
324	CDLF150-30-2	150	49	2950	30	75.8
325	CDLF150-30-1	150	56	2950	37	75.8
326	CDLF150-30	150	63	2950	37	75.8
327	CDLF150-40-2	150	71	2950	45	75.8
328	CDLF150-40-1	150	77	2950	45	75.8
329	CDLF150-40	150	84	2950	55	75.8
330	CDLF150-50-2	150	92	2950	55	75.8
331	CDLF150-50-1	150	99	2950	75	75.8
332	CDLF150-50	150	107	2950	75	75.8
333	CDLF150-60-2	150	112	2950	75	75.8
334	CDLF150-60-1	150	121	2950	75	75.8
335	CDLF150-60	150	130	2950	75	75.8
336	CDLF200-10-B	200	20	2950	18.5	80.8
337	CDLF200-10-A	200	24	2950	22	80.8
338	CDLF200-10	200	34	2950	30	80.8
339	CDLF200-20-2B	200	41	2950	37	80.8
340	CDLF200-20-2A	200	49	2950	45	80.8
341	CDLF200-20-A	200	59	2950	55	80.8
342	CDLF200-20	200	69	2950	55	80.8
343	CDLF200-30-2B	200	75	2950	75	80.8
344	CDLF200-30-A-B	200	79	2950	75	80.8
345	CDLF200-30-2A	200	84	2950	75	80.8
346	CDLF200-30-B	200	89	2950	75	80.8
347	CDLF200-30-A	200	93	2950	75	80.8
348	CDLF200-30	200	103	2950	90	80.8
349	CDLF200-40-2B	200	110	2950	90	80.8
350	CDLF200-40-2A	200	118	2950	110	80.8
351	CDLF200-40-A	200	128	2950	110	80.8
352	CDLF200-40	200	138	2950	110	80.8
